2SA1802 Silicon PNP Epitaxial Type Transistor

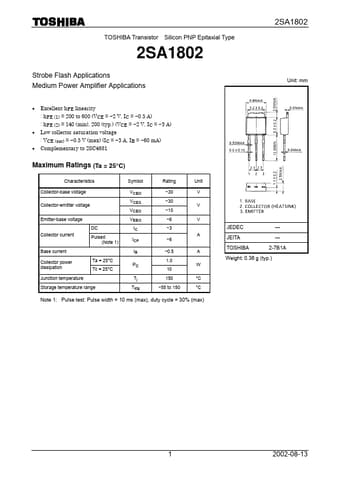

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA1802 Strobe Flash Applications Medium Power Amplifier Applications 2SA1802 Unit: mm Excellent hFE linearity : hFE (1) = 200 to 600 (VCE = 2 V, IC = 0.5 A) : hFE (2) = 140 (min), 200 (typ.) (VCE = 2 V, IC = 3 A) Low collector saturation voltage : VCE (sat) = 0.5 V (max) (IC = 3 A, IB = 60 mA) Complementary to 2SC4681 Maximum Ratings (Ta = 25°C) Characteristics Sym.
