2SA1806 Datasheet PDF - Panasonic Semiconductor Silicon PNP epitaxial planer type Transistor Specs

2SA1806 - Silicon PNP epitaxial planer type Transistor

Datasheet Summary

Features

q q q 0.4 0.8±0.1 0.4 0.2.
0.05 0.15.
0.05 +0.1 High-speed switching. Low collector to emitter saturation voltage VCE(sat). SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. (Ta=25˚C) Ratings.
15.
15.
4.
100.
50 125 125.
55 ~ +125 Unit V V V mA mA mW ˚C ˚C 1.6±0.1 1.0±0.1 0.5 1 0.5 3 2 0.45±0.1 0.3 0.75±0.15 Parameter Collector to base vo.

Datasheet Details

Part number	2SA1806
Manufacturer	Panasonic Semiconductor
File Size	40.79 KB
Description	Silicon PNP epitaxial planer type Transistor
Datasheet	2SA1806 Datasheet
Additional preview pages of the 2SA1806 datasheet.

📁 Similar Datasheet

2SA1801 - TRANSISTOR (Toshiba Semiconductor)

2SA1802 - Silicon PNP Epitaxial Type Transistor (Toshiba Semiconductor)

2SA1803 - TRANSISTOR (Toshiba Semiconductor)

2SA1803 - SILICON POWER TRANSISTOR (SavantIC)

2SA1803 - Power Transistor (Inchange Semiconductor)

2SA1804 - TRANSISTOR (Toshiba Semiconductor)

2SA1804 - SILICON POWER TRANSISTOR (SavantIC)

2SA1804 - Power Transistor (Inchange Semiconductor)

2SA1805 - TRANSISTOR (Toshiba Semiconductor)

2SA1805 - SILICON POWER TRANSISTOR (SavantIC)

Full PDF Text Transcription

Click to expand full text

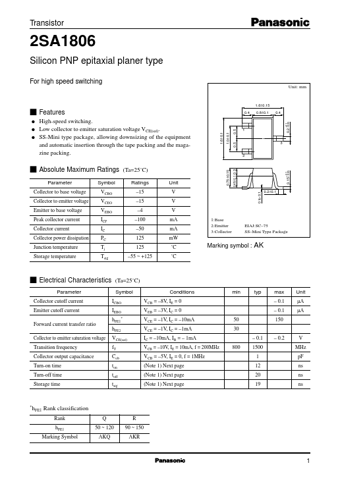

Transistor 2SA1806 Silicon PNP epitaxial planer type For high speed switching Unit: mm 1.6±0.15 s Features q q q 0.4 0.8±0.1 0.4 0.2–0.05 0.15–0.05 +0.1 High-speed switching. Low collector to emitter saturation voltage VCE(sat). SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. (Ta=25˚C) Ratings –15 –15 –4 –100 –50 125 125 –55 ~ +125 Unit V V V mA mA mW ˚C ˚C 1.6±0.1 1.0±0.1 0.5 1 0.5 3 2 0.45±0.1 0.3 0.75±0.
