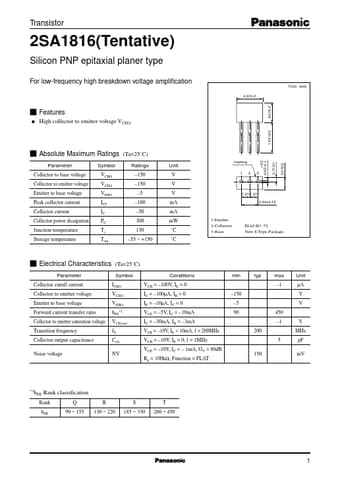

* q High collector to emitter voltage VCEO. 15.6±0.5 s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO
2SA1816
Panasonic Semiconductor
21.89 KB
Silicon pnp epitaxial planer type transistor.
Transistor
2SA1816(Tentative)
Silicon PNP epitaxial planer type
For low-frequency high breakdown voltage amplification
4.0±0.2
3.0±0.2
Unit: mm
s F.
