* Very small-sized package permitting 2SA1813- applied sets to be made smaller and slimmer.
* Adoption of FBET process.
* High DC current gain (hFE=500 to 1200).
* Low collector-to-emitter saturation voltage (VCE(sat)≤0.3V).
* High VEBO (VEBO≥15V). Package Dimensions unit:mm 205
2SA1813
Sanyo Semicon Device
81.32 KB
Pnp epitaxial planar silicon transistor.
Ordering number:EN3972

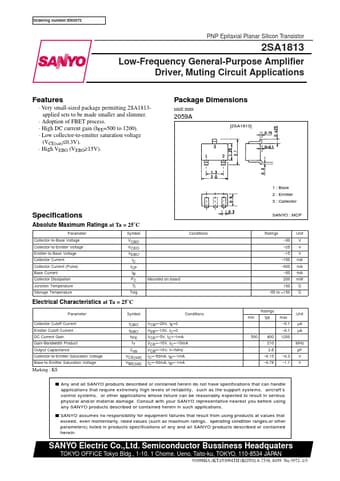

PNP Epitaxial Planar Silicon Transistor
2SA1813
Low-Frequency General-Purpose Amplifier Driver, Muting Circuit Applications
