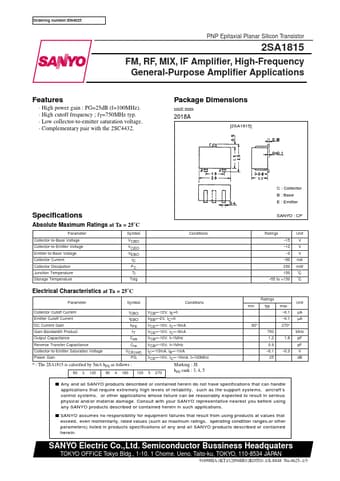

* High power gain : PG=25dB (f=100MHz).
* High cutoff frequency ; fT=750MHz typ.
* Low collector-to-emitter saturation voltage.
* Complementary pair with the 2SC4432. Package Dimensions unit:mm 2018A [2SA1815] C : Collector B : Base E : Emitter Specifications Absolute Maximum Rat
2SA1815
Sanyo Semicon Device
68.21 KB
Pnp epitaxial planar silicon transistor.
Ordering number:EN4625
PNP Epitaxial Planar Silicon Transistor
2SA1815
FM, RF, MIX, IF Amplifier, High-Frequency General-Purpose Amplifier Applicatio.
