2SA1908 Datasheet - Inchange Semiconductor

2SA1908, Power Transistor

isc Silicon PNP Power Transistor 2SA1908 .
Collector-Emitter Breakdown Voltage- V(BR)CEO= -120V(Min). Good Linearity of hFE. Complement to Type 2SC5100. Minimum Lot-to-Lot vari.

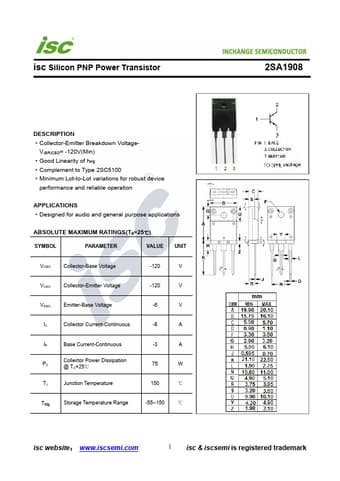

datasheet Preview Page 1 from Datasheet4u.com

2SA1908_InchangeSemiconductor.pdf

2SA1908 Datasheet Preview — Preview of 2SA1908 PDF

Datasheet Details

Part number:

2SA1908

Manufacturer:

Inchange Semiconductor

File Size:

222.55 KB

Description:

Power Transistor

Applications

* Designed for audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage -120 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -8 A IB Base Current-Co
