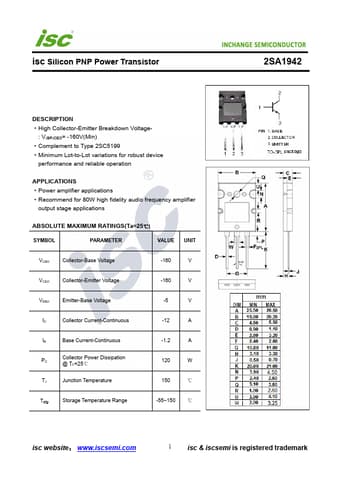

2SA1942 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA1942

Manufacturer:

Inchange Semiconductor

File Size:

219.53kb

Download:

📄 Datasheet

Description:

Power transistor.

High Collector-Emitter Breakdown Voltage- : V(BR)CEO= -160V(Min)

Complement to Type 2SC5199

Minimum Lot-to

2SA1942 Application

• Applications
• Power amplifier applications
• Recommend for 80W high fidelity audio frequency amplifier output stage applications ABS
