2SA1941 Datasheet - Toshiba Semiconductor

2SA1941 Silicon PNP Transistor

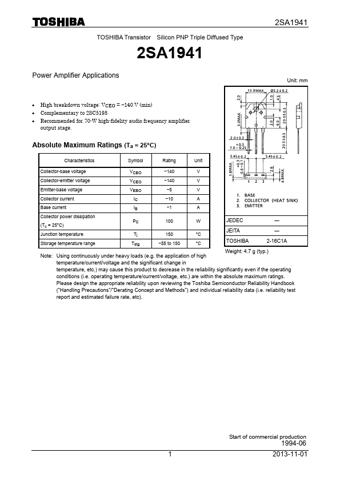

TOSHIBA Transistor Silicon PNP Triple Diffused Type 2SA1941 Power Amplifier Applications 2SA1941 Unit: mm High breakdown voltage: VCEO = 140 V (min) Complementary to 2SC5198 Recommended for 70-W high-fidelity audio frequency amplifier output stage. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 140 V Collector-emitter voltage VCEO 140 V Emitter-base voltage VEBO .

2SA1941 Features

* es, including without limitation, the EU RoHS Directive. TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. 4 2013-11-01
