* High breakdown voltage, V CEO = -140V (min) Complementary to 2SC5198B TO-3P package which can be installed to the heat sink with one screw 2 3 +0.2 1.05 -0.1 5.45±0.1 C E +0.2 0.65 -0.1 5.45±0.1 B 1.8 15.6±0.4 9.6 5 . 0 ±0 . 2 4.8±0.2 2.0±0.1 Φ 3.2 ± 0,1 1.4 C APPLICATIONS Suitable for use

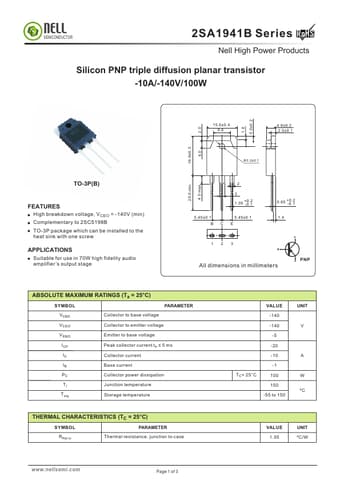

2SA1941B Datasheet (242.03 KB)
2SA1941B
NELL SEMICONDUCTOR
242.03 KB
Silicon pnp transistor.
SEMICONDUCTOR
2SA1941B Series
Silicon PNP triple diffusion planar transistor -10A/-140V/100W
RoHS RoHS
Nell High Power Products
2.0
19.9±0.3
4.0.
