2SB1261-K - Silicon NPN Power Transistor

Datasheet Summary

Description

Low Collector Saturation Voltage High Power Dissipation- : PC= 10W(Max)@TC=25℃ Complement to Type 2SD1899-K Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in audio amplifier and switching, especially in hybrid

Datasheet Details

Part number	2SB1261-K
Manufacturer	Inchange Semiconductor
File Size	211.85 KB
Description	Silicon NPN Power Transistor
Datasheet	2SB1261-K Datasheet
Additional preview pages of the 2SB1261-K datasheet.

📁 Similar Datasheet

2SB1261-Z - PNP SILICON EPITAXIAL TRANSISTOR (NEC)

2SB1261-Z - Plastic-Encapsulate Transistors (TRANSYS Electronics Limited)

2SB1261 - PNP Transistor (LGE)

2SB1261 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

2SB1261 - PNP Epitaxial Planar Silicon Transistors (GME)

2SB1261 - PNP Transistor (JCET)

2SB1261 - PNP Epitaxial Silicon Transistor (JILIN SINO)

2SB1261L - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

2SB1260 - Power Transistor (Rohm)

2SB1260 - Power Transistor (GME)

Full PDF Text Transcription

Click to expand full text

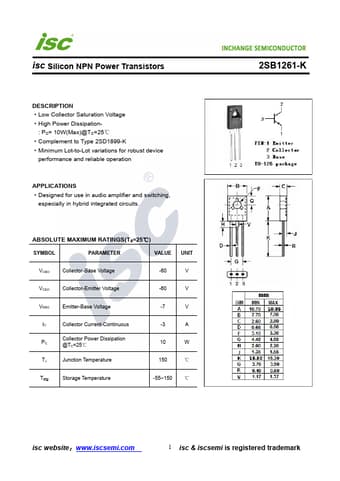

isc Silicon NPN Power Transistors DESCRIPTION ·Low Collector Saturation Voltage ·High Power Dissipation- : PC= 10W(Max)@TC=25℃ ·Complement to Type 2SD1899-K ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use in audio amplifier and switching, especially in hybrid integrated circuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature -3 A 10 W 150 ℃ Tstg Storage Temperature -55~150 ℃ 2SB1261-K isc website：www.iscsemi.
