2SB1261 - PNP Transistor

2SB1261 Description

2SB1261 Transistor(PNP) 1.BASE 1 2.COLLECTOR 3.EMITTER TO-252-2L .

2SB1261 Features

* — High hFE hFE=100 to 400 — Low vCE(sat) vCE(sat) ≤0.3V MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value VCBO Collector-Base Voltage -60 VCEO Collector-Emitter Voltage -60 VEBO Emitter-Base Voltage -7 IC Collector Current -Continuous -3 PD Collector Power Dissip

📥 Download Datasheet

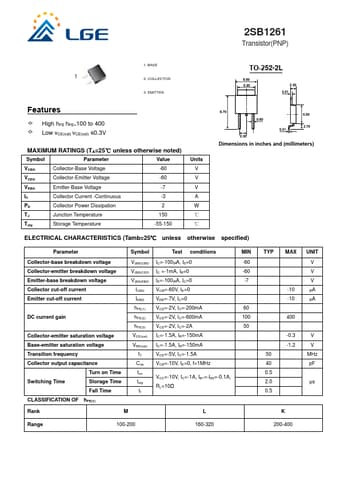

Preview of 2SB1261 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB1261
Manufacturer
LGE
File Size
296.75 KB
Datasheet
2SB1261-LGE.pdf
Description
PNP Transistor
