2SB1184

PNP Transistor

2SB1184 Features

* Low VCE(sat). VCE(sat) = -0.5V (Typ.) (IC/IB = -2A / -0.2A) Complements the 2SD1760 / 2SD1864. MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value Units TO-252-2L VCBO Collector Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V

2SB1184 Datasheet (207.18 KB)

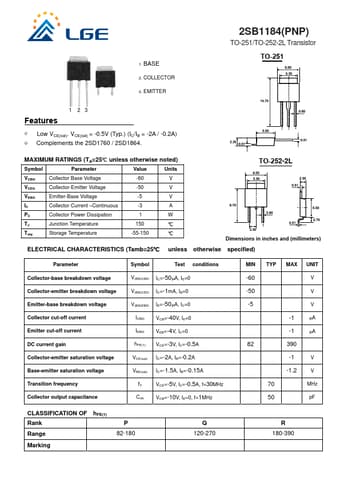

Preview of 2SB1184 PDF

Datasheet Details

Part number:

2SB1184

Manufacturer:

LGE

File Size:

207.18 KB

Description:

Pnp transistor.
