Part number:
2SB649
Manufacturer:
LGE
File Size:
199.20 KB
Description:
Pnp transistor.

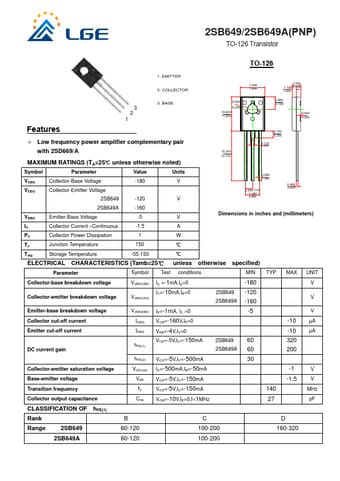

* 3 2 1 3. BASE Low frequency power amplifier complementary pair with 2SD669/A MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value Units VCBO Collector-Base Voltage -180 V VCEO Collector-Emitter Voltage 2SB649 -120 V 2SB649A -160 VEBO Emitter-Base Voltage -5 V
2SB649
LGE
199.20 KB
Pnp transistor.
