2SB649A, 2SB649 - PNP Transistor

2SB649A Description

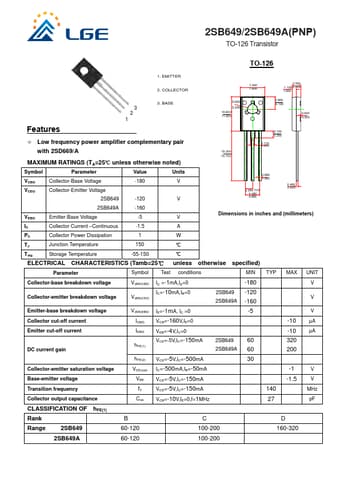

2SB649/2SB649A(PNP) TO-126 Transistor TO-126 1.EMITTER 2.COLLECTOR 7.400 7.800 2.500 1.100 2.900 1.500 .

2SB649A Features

* 3 2 1 3. BASE Low frequency power amplifier complementary pair with 2SD669/A MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value Units VCBO Collector-Base Voltage -180 V VCEO Collector-Emitter Voltage 2SB649 -120 V 2SB649A -160 VEBO Emitter-Base Voltage -5 V
