2SB1260 - Power Transistor

Datasheet Summary

Features

  • 1) Suitable for Middle Power Driver 2) Complementary NPN Types : 2SD1898 / 2SD1733 3) Low VCE(sat) VCE(sat)= -0.4V Max. (IC/IB= -500mA/ -50mA) 4) Lead Free/RoHS Compliant. 2SB1260 (SC-62) Datasheet CPT3 Collector Base Emitter 2SB1181 (SC-63) lInner circuit Collector Base Emitter l.

📥 Download Datasheet

Datasheet preview – 2SB1260

Datasheet Details

Part number 2SB1260
Manufacturer ROHM
File Size 360.54 KB
Description Power Transistor
Datasheet download datasheet 2SB1260 Datasheet
Additional preview pages of the 2SB1260 datasheet.

📁 Similar Datasheet

  • 2SB1260 - Power Transistor (GME)
  • 2SB1260 - PNP Transistor (HOTTECH)
  • 2SB1260 - Plastic-Encapsulate Transistors (WILLAS)
  • 2SB1260 - PNP Transistor (JinYu)
  • 2SB1260 - PNP Transistors (Kexin)
  • 2SB1260 - PNP Transistor (JCET)
  • 2SB1260 - PNP Plastic Encapsulated Transistor (SeCoS)
  • 2SB1260 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB1260 - PNP Plastic-Encapsulate Transistor (Weitron Technology)
  • 2SB1260 - POWER TRANSISTOR (UTC)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text

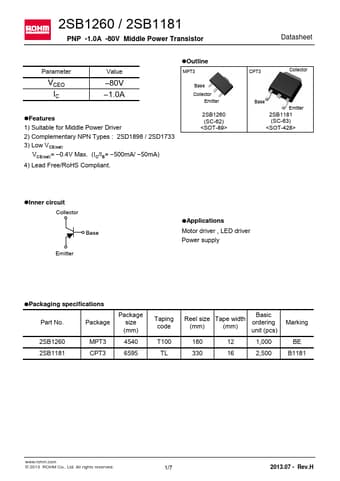

2SB1260 / 2SB1181 PNP -1.0A -80V Middle Power Transistor Parameter VCEO IC Value -80V -1.0A lOutline MPT3 Base Collector Emitter lFeatures 1) Suitable for Middle Power Driver 2) Complementary NPN Types : 2SD1898 / 2SD1733 3) Low VCE(sat) VCE(sat)= -0.4V Max. (IC/IB= -500mA/ -50mA) 4) Lead Free/RoHS Compliant. 2SB1260 (SC-62) Datasheet CPT3 Collector Base Emitter 2SB1181 (SC-63) lInner circuit Collector Base Emitter lApplications Motor driver , LED driver Power supply lPackaging specifications Part No. Package 2SB1260 2SB1181 MPT3 CPT3 Package size (mm) 4540 6595 Taping code T100 TL Reel size (mm) Tape width (mm) Basic ordering unit (pcs) 180 12 1,000 330 16 2,500 Marking BE B1181 www.rohm.com © 2013 ROHM Co., Ltd. All rights reserved. 1/7 2013.
