2SB1236A - Power Transistor

2SB1236A Description

Power Transistor (160V, 1.5A) 2SB1275 / 2SB1236A *.

2SB1236A Features

* 1) High breakdown voltage. (BVCEO = 160V) 2) Low collector output capacitance. (Typ. 30pF at VCB = 10V) 3) High transition frequency. (fT = 50MHZ) 4) Complements the 2SD1918 / 2SD1857A.
* Absolute maximum ratings (Ta = 25C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base

📥 Download Datasheet

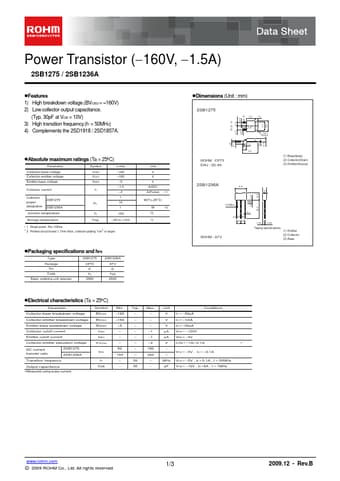

Preview of 2SB1236A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB1236A
Manufacturer
ROHM ↗
File Size
107.98 KB
Datasheet
2SB1236A_Rohm.pdf
Description
Power Transistor
