2SB1241 - Power Transistor

Datasheet Summary

Features

1) High breakdown voltage and high current. BVCEO=.
80V, IC=.
1A 2) Good hFE linearity. 3) Low VCE(sat). 4) Complements the 2SD1898 / 2SD1863 / 2SD1733. !External dimensions (Units : mm) 2SB1260 4.5+0.2.
0.1 1.6±0.1 2SB1181 1.5±0.3 6.5±0.2 5.1+0.2.
0.1 C0.5 2.3+0.2.
0.1 0.5±0.1 0.5±0.1 1.5 +0.2.
0.1 5.5+0.3.
0.1 4.0 ±0.3 2.5+0.2.
0.1 0.75 (1) (2) (3) 0.4±0.1 1.5±0.1 0.4+0.1.
0.05 0.65±0.1 0.9 1.0±0.2 0.55±0.1 2.3±0.2.

Datasheet Details

Part number	2SB1241
Manufacturer	ROHM
File Size	80.42 KB
Description	Power Transistor
Datasheet	2SB1241 Datasheet
Additional preview pages of the 2SB1241 datasheet.

📁 Similar Datasheet

2SB1240 - Medium Power Transistor (GME)

2SB1240 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

2SB1243 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

2SB1243 - Power Transistor (GME)

2SB1244 - LOW FREQUENCY HIGH VOLTAGE AMPLIFIER (Hitachi Semiconductor)

2SB1245 - (2SB1244 / 2SB1245) LOW FREQUENCY HIGH VOLTAGE AMPLIFIER (Hitachi Semiconductor)

2SB1201 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

2SB1201 - Bipolar Transistor (ON Semiconductor)

2SB1201 - Transistors (Kexin)

2SB1201 - Silicon PNP Power Transistor (Inchange Semiconductor)

Full PDF Text Transcription

Click to expand full text

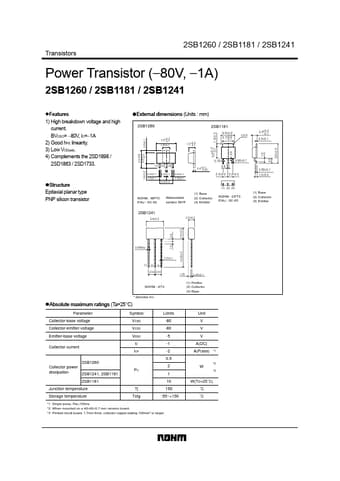

2SB1260 / 2SB1181 / 2SB1241 Transistors Power Transistor (−80V, −1A) 2SB1260 / 2SB1181 / 2SB1241 !Features 1) High breakdown voltage and high current. BVCEO= −80V, IC=−1A 2) Good hFE linearity. 3) Low VCE(sat). 4) Complements the 2SD1898 / 2SD1863 / 2SD1733. !External dimensions (Units : mm) 2SB1260 4.5+0.2 −0.1 1.6±0.1 2SB1181 1.5±0.3 6.5±0.2 5.1+0.2 −0.1 C0.5 2.3+0.2 −0.1 0.5±0.1 0.5±0.1 1.5 +0.2 −0.1 5.5+0.3 −0.1 4.0 ±0.3 2.5+0.2 −0.1 0.75 (1) (2) (3) 0.4±0.1 1.5±0.1 0.4+0.1 −0.05 0.65±0.1 0.9 1.0±0.2 0.55±0.1 2.3±0.2 2.3±0.2 1.0±0.2 0.4±0.1 1.5±0.1 0.5±0.1 3.0±0.
