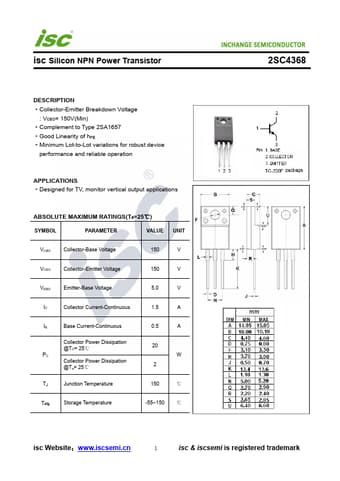

Part number: 2SC4368
Manufacturer: Inchange Semiconductor
File Size: 183.03KB
Download: 📄 Datasheet
Description: Silicon NPN Power Transistor
*Designed for TV, monitor vertical output applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE U.
*Collector-Emitter Breakdown Voltage
: VCEO= 150V(Min)
*Complement to Type 2SA1657
*Good Linearity of hFE
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Designed for TV, monitor .
Image gallery
