2SC4366 Datasheet - Hitachi Semiconductor

2SC4366 Silicon NPN Transistor

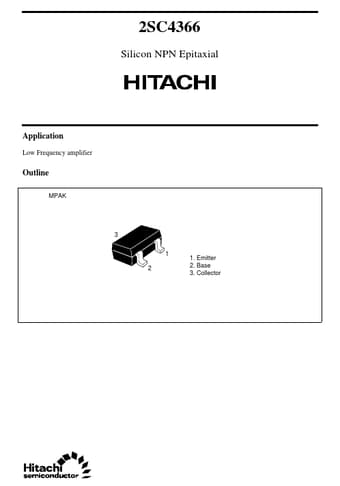

2SC4366 Silicon NPN Epitaxial Application Low Frequency amplifier Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SC4366 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 60 50 15 300 150 150 55 to +150 Unit V V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Collector.

2SC4366_HitachiSemiconductor.pdf

Preview of 2SC4366 PDF
2SC4366 Datasheet Preview Page 2 2SC4366 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC4366

Manufacturer:

Hitachi Semiconductor

File Size:

29.56 KB

Description:

Silicon npn transistor.
