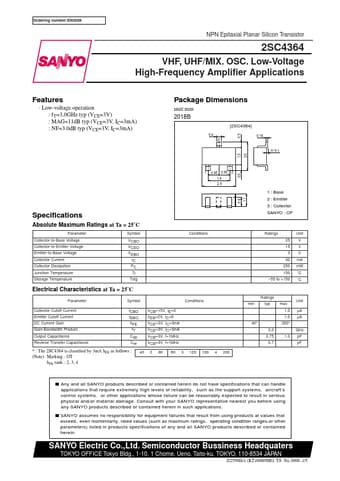

Part number: 2SC4364
Manufacturer: Sanyo Semicon Device
File Size: 117.19KB
Download: 📄 Datasheet
Description: NPN Epitaxial Planar Silicon Transistor
* Low-voltage operation
: fT=3.0GHz typ (VCE=3V) : MAG=11dB typ (VCE=3V, IC=3mA) : NF=3.0dB typ (VCE=3V, IC=3mA)
Package Dimensions
unit:mm 2018B
[2SC4364]
0.4 3
.
Features
* Low-voltage operation
: fT=3.0GHz typ (VCE=3V) : MAG=11dB typ (VCE=3V, IC=3mA) : NF=3.0dB typ (VCE=3V, I.
