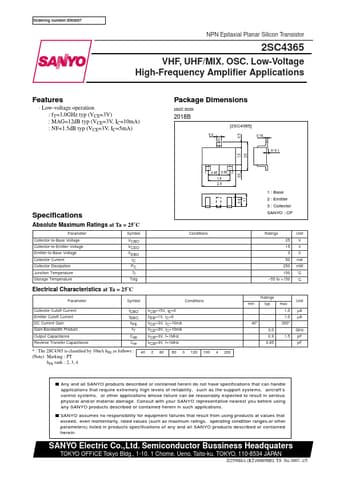

Part number: 2SC4365
Manufacturer: Sanyo Semicon Device
File Size: 145.39KB
Download: 📄 Datasheet
Description: NPN Epitaxial Planar Silicon Transistor
* Low-voltage operation
: fT=3.0GHz typ (VCE=3V) : MAG=12dB typ (VCE=3V, IC=10mA) : NF=1.5dB typ (VCE=3V, IC=5mA)
Package Dimensions
unit:mm 2018B
[2SC4365]
0.4 3.
Features
* Low-voltage operation
: fT=3.0GHz typ (VCE=3V) : MAG=12dB typ (VCE=3V, IC=10mA) : NF=1.5dB typ (VCE=3V, .
Image gallery
