2SD1485 Silicon NPN Power Transistor

Inchange Semiconductor

Description

isc Silicon NPN Power Transistor 2SD1485 .
Low Collector Saturation Voltage- : VCE(sat)= 2. Wide Area of Safe Operation. Complement to Type 2SB1054. Minimum Lot-.

📥 Download Datasheet

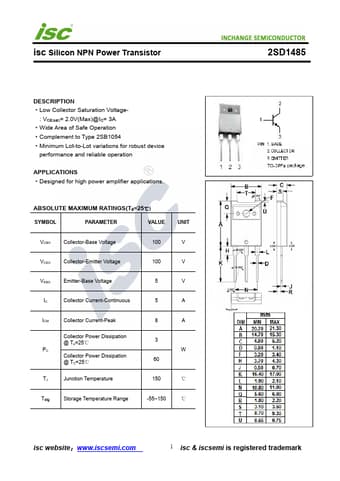

2SD1485 Datasheet Preview — Preview of 2SD1485 PDF

Datasheet Specifications

Part number: 2SD1485
Manufacturer: Inchange Semiconductor
File Size: 214.61 KB
Datasheet: 2SD1485_InchangeSemiconductor.pdf
Description: Silicon NPN Power Transistor

Applications

* Designed for high power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 5 A ICM Collector Current-Peak
