2SK1352 Datasheet - Inchange Semiconductor

2SK1352, N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor 2SK1352 .
Drain Current. ID=7A@ TC=25℃. Drain Source Voltage- : VDSS=500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for.

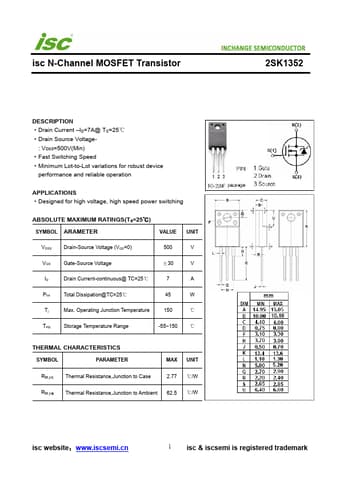

datasheet Preview Page 1 from Datasheet4u.com

2SK1352-InchangeSemiconductor.pdf

2SK1352 Datasheet Preview — Preview of 2SK1352 PDF

Datasheet Details

Part number:

2SK1352

Manufacturer:

Inchange Semiconductor

File Size:

175.58 KB

Description:

N-Channel MOSFET Transistor

Applications

* Designed for high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 7 A Ptot Total Dissipation@TC=25℃ 45 W Tj Max. Operati
