2SK1357 - N-Channel MOSFET Transistor

2SK1357 Description

isc N-Channel MOSFET Transistor 2SK1357 .
Drain Current. ID= 5A@ TC=25℃. Drain Source Voltage- : VDSS= 900V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations f.

2SK1357 Applications

* high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 900 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 5 A Ptot Total Dissipation@TC=25℃ 125 W Tj Max. Operating Junction

📥 Download Datasheet

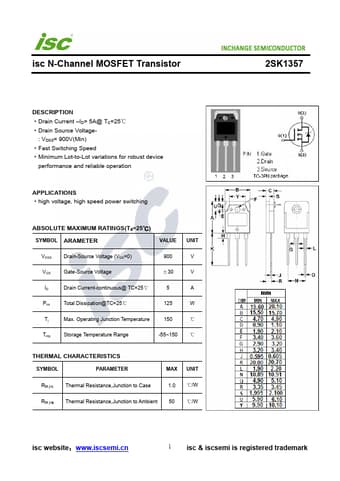

Preview of 2SK1357 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK1357
Manufacturer
Inchange Semiconductor
File Size
203.50 KB
Datasheet
2SK1357-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
