2SK4212A, N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor 2SK4212A .
motor drive, DC-DC converter, power switch and solenoid drive.

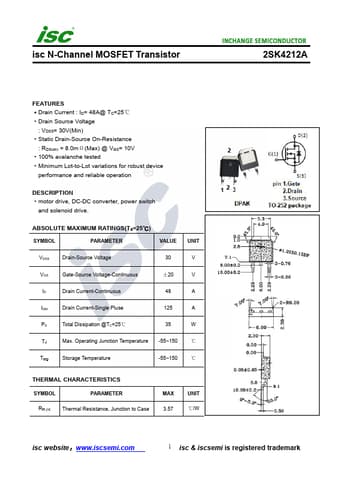

datasheet Preview Page 1 from Datasheet4u.com

2SK4212A-InchangeSemiconductor.pdf

2SK4212A Datasheet Preview — Preview of 2SK4212A PDF

Datasheet Details

Part number:

2SK4212A

Manufacturer:

Inchange Semiconductor

File Size:

286.84 KB

Description:

N-Channel MOSFET Transistor

Features

* Drain Current : ID= 48A@ TC=25℃
* Drain Source Voltage : VDSS= 30V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 8.0mΩ(Max) @ VGS= 10V
* 100% avalanche tested

Applications

* of our products. ISC products are intended for usage in general electronic equipment. The products are not designed for use in equipment which require specialized quality and/or reliability, or in equipment which could have applications in hazardous environments, aerospace industry, or medical field
