5N30 - N-Channel MOSFET Transistor

Datasheet Summary

Description

Drain Current ID= 5A@ TC=25℃ Drain Source Voltage- : VDSS= 300V(Min) Fast Switching Speed APPLICATIONS General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) VGS Gate-Source Voltage ID Drain Curr

Inchange Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	5N30
Manufacturer	Inchange Semiconductor
File Size	61.53 KB
Description	N-Channel MOSFET Transistor
Datasheet	5N30 Datasheet

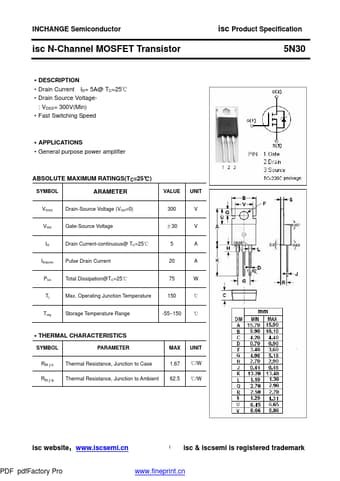

Additional preview pages of the 5N30 datasheet.

📁 Similar Datasheet

5N3011 - N-Channel MOSFET (Renesas)
5N3011P - N-Channel MOSFET (Renesas)

Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 5N30 ·DESCRIPTION ·Drain Current ID= 5A@ TC=25℃ ·Drain Source Voltage- : VDSS= 300V(Min) ·Fast Switching Speed ·APPLICATIONS ·General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) VGS Gate-Source Voltage ID Drain Current-continuous@ TC=25℃ 300 ±30 5 V V A ID(puls) Pulse Drain Current 20 A Ptot Total Dissipation@TC=25℃ 75 W Tj Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Rth j-a Thermal Resistance, Junction to Case Thermal Resistance, Junction to Ambient 1.67 ℃/W 62.5 ℃/W isc website：www.iscsemi.
