IRF330 - N-Channel MOSFET Transistor

IRF330 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRF330 .
Drain Current ID=5. Drain Source Voltage- : VDSS= 400V(Min). Static Drain-Source On-Resistance : RDS(on) = 1. Fast.

IRF330 Applications

* High voltage,high speed applications
* Off-line switching power supplies , UPS,AC and DC motor controls,relay and solenoid drivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) Gate-Source Voltage 400 ±20 V V Drai

📥 Download Datasheet

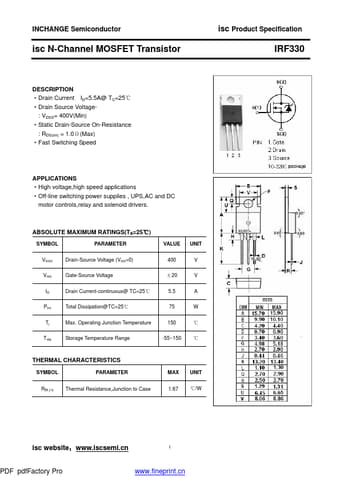

Preview of IRF330 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRF330
Manufacturer
Inchange Semiconductor
File Size
53.81 KB
Datasheet
IRF330-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
