KSC5022, Silicon NPN Power Transistor

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification KSC5022 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 500V(Min). High Switching Speed. Wide Area of Safe Operation APPLICATIONS. Switchin.

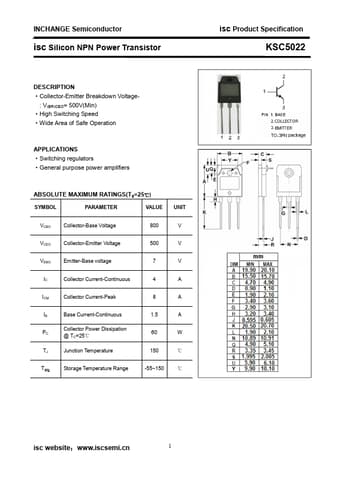

datasheet Preview Page 1 from Datasheet4u.com

KSC5022-InchangeSemiconductor.pdf

KSC5022 Datasheet Preview — Preview of KSC5022 PDF

Datasheet Details

Part number:

KSC5022

Manufacturer:

Inchange Semiconductor

File Size:

208.35 KB

Description:

Silicon NPN Power Transistor

Applications

* Switching regulators
* General purpose power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 800 V VCEO Collector-Emitter Voltage 500 V VEBO Emitter-Base voltage 7V IC Collector Current-Continuous 4 A ICM Collector Current-P
