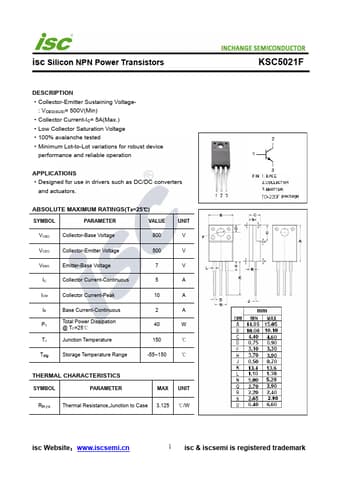

Part number: KSC5021F
Manufacturer: INCHANGE
File Size: 180.49KB
Download: 📄 Datasheet
Description: NPN Transistor
*Designed for use in drivers such as DC/DC converters
and actuators.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARA.
*Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= 500V(Min)
*Collector Current-IC= 5A(Max.)
*Low Collector Saturation Voltage
*100% avalanche tested
*Minimum Lot-to-Lot variations for robust device
performance and reliable opera.
