KTD1510 Datasheet, Transistors, Inchange Semiconductor

PDF File Details

Part number:

KTD1510

Manufacturer:

Inchange Semiconductor

File Size:

146.13kb

Download:

📄 Datasheet

Description:

Silicon npn power transistors.

  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= 150V(Min)
  • Collector-Emitter Saturation Voltage- : VCE(sat)= 2.5V(M

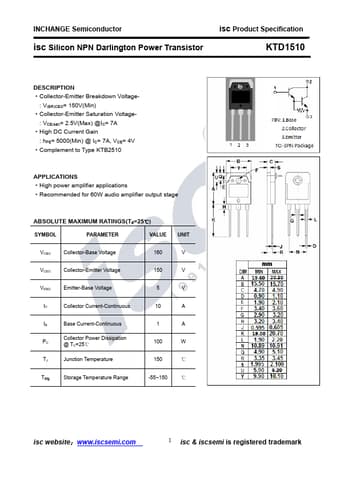

  • Datasheet Preview: KTD1510 📥 Download PDF (146.13kb)
    Page 2 of KTD1510

    KTD1510 Application

    • Applications
    • High power amplifier applications
    • Recommended for 60W audio amplifier output stage ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
