BF1005SW Datasheet - Infineon Technologies AG

BF1005SW Silicon N-Channel MOSFET Tetrode

BF1005S Silicon N-Channel MOSFET Tetrode For low noise, high gain controlled input stages up to 1 GHz Operating voltage 5 V Integrated biasing network Drain AGC HF Input G2 G1 HF Output + DC GND EHA07215 ESD: Electrostatic discharge sensitive device, observe handling precaution! Type BF1005S BF1005SR BF1005SW Maximum Ratings Parameter Package SOT143 SOT143R SOT343 1=S 1=D 1=D 2=D 2=S 2=S Pin Configuration 3=G2 3=G1 3=G1 4=G1 4=G2 4=G2 - Marking NZs NZs NZ Sy.

BF1005SW_InfineonTechnologiesAG.pdf

Preview of BF1005SW PDF

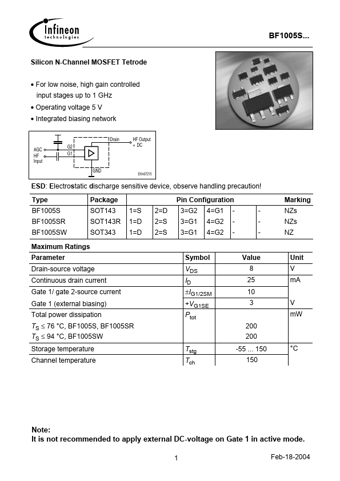

BF1005SW Datasheet Preview Page 2 BF1005SW Datasheet Preview Page 3

Datasheet Details

Part number:

BF1005SW

Manufacturer:

Infineon ↗ Technologies AG

File Size:

252.41 KB

Description:

Silicon n-channel mosfet tetrode.
