BF1009S Datasheet - Siemens Semiconductor Group

BF1009S Silicon N-Channel MOSFET Tetrode

BF 1009S Silicon N-Channel MOSFET Tetrode For low noise, high gain controlled input stages up to 1GHz Operating voltage 9V Integrated bias network ESD: Electrostatic discharge sensitive device, observe handling precaution! Type Marking Ordering Code Q62702-F1628 Pin Configuration 1=S 2=D 3 = G2 4 = G1 Package SOT-143 BF 1009S JLs Maximum Ratings Parameter Drain-source voltage Symbol Value 12 25 10 3 200 -55 +150 150 Unit V mA V mW °C VDS ID ±I G1/2SM +VG1S.

BF1009S_SiemensSemiconductorGroup.pdf

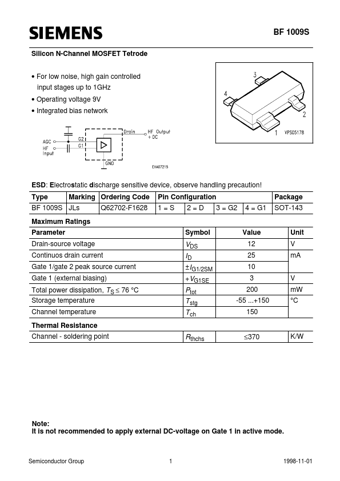

Preview of BF1009S PDF
BF1009S Datasheet Preview Page 2 BF1009S Datasheet Preview Page 3

Datasheet Details

Part number:

BF1009S

Manufacturer:

Siemens Semiconductor Group

File Size:

51.90 KB

Description:

Silicon n-channel mosfet tetrode.
