BF1005W Silicon N-Channel MOSFET Tetrode

BF1005 Silicon N-Channel MOSFET Tetrode For low noise, high gain controlled input stages up to 1 GHz Operating voltage 5V Integrated biasing network Drain AGC HF Input G2 G1 HF Output + DC GND EHA07215 ESD: Electrostatic discharge sensitive device, observe handling precaution! Type BF1005 BF1005R BF1005W on request only Maximum Ratings Parameter Package SOT143 SOT143R SOT343 1=S 1=D 1=D 2=D 2=S 2=S Pin Configuration 3=G2 3=G1 3=G1 4=G1 4=G2 4=G2 - .

BF1005W_InfineonTechnologiesAG.pdf

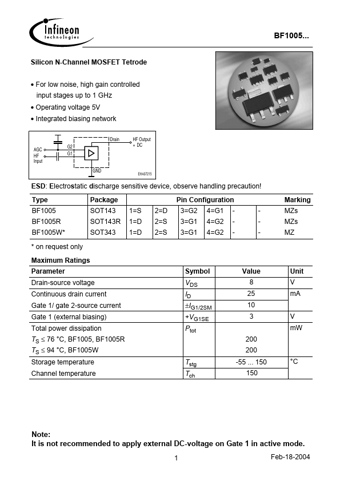

Preview of BF1005W PDF
BF1005W Datasheet Preview Page 2 BF1005W Datasheet Preview Page 3

Datasheet Details

Part number:

BF1005W

Manufacturer:

Infineon ↗ Technologies AG

File Size:

252.08 KB

Description:

Silicon n-channel mosfet tetrode.
