IKW75N60T Datasheet - Infineon Technologies

IKW75N60T IGBT

IKW75N60T TRENCHSTOP™ Series q Low Loss DuoPack : IGBT in TRENCHSTOP™ and Fieldstop technology with soft, fast recovery anti-parallel Emitter Controlled HE diode Very low VCE(sat) 1.5V (typ.) Maximum Junction Temperature 175°C Short circuit withstand time 5s Positive temperature coefficient in VCE(sat) very tight parameter distribution high ruggedness, temperature stable behaviour very high switching speed Low EMI Very soft, fast recover.

IKW75N60T_InfineonTechnologies.pdf

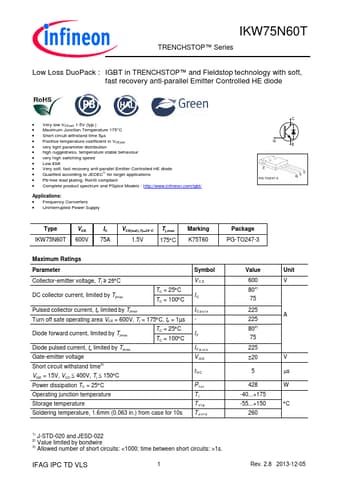

Preview of IKW75N60T PDF
IKW75N60T Datasheet Preview Page 2 IKW75N60T Datasheet Preview Page 3

Datasheet Details

Part number:

IKW75N60T

Manufacturer:

Infineon ↗ Technologies

File Size:

852.10 KB

Description:

Igbt.
