IKW75N65ET7, Low loss Duopack IGBT

IKW75N65ET7 Low loss Duopack: IGBT 7 Low loss Duopack: IGBT 7 with Trench and Fieldstop technology .
Package pin definition:. Pin C & backside - Collector. Pin E - Emitter. Pin G - Gate C TO-247. 3Pin 2021-10-27.

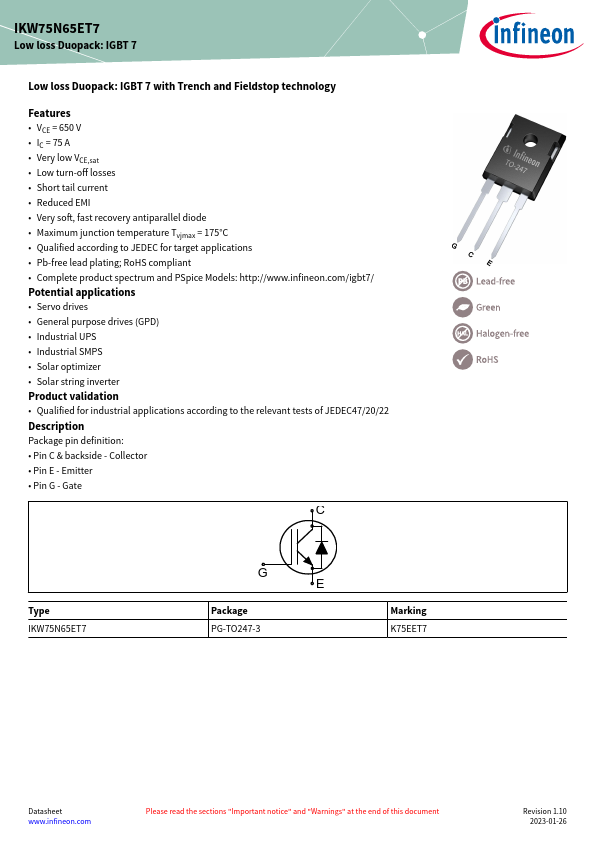

datasheet Preview Page 1 from Datasheet4u.com

IKW75N65ET7-Infineon.pdf

IKW75N65ET7 Datasheet Preview — Preview of IKW75N65ET7 PDF

Datasheet Details

Part number:

IKW75N65ET7

Manufacturer:

Infineon ↗

File Size:

1.49 MB

Description:

Low loss Duopack IGBT

Features

* VCE = 650 V
* IC = 75 A
* Very low VCE,sat
* Low turn-off losses
* Short tail current
* Reduced EMI
* Very soft, fast recovery antiparallel diode
* Maximum junction temperature Tvjmax = 175°C
* Qualified according to JEDEC for

Applications

* Pb-free lead plating; RoHS compliant
* Complete product spectrum and PSpice Models: http://www. infineon. com/igbt7/ Potential applications
* Servo drives
* General purpose drives (GPD)
* Industrial UPS
* Industrial SMPS
* Solar optimizer
