IPA90R500C3 CoolMOS Power Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

IPA90R500C3 CoolMOS™ Power Transistor .

📥 Download Datasheet

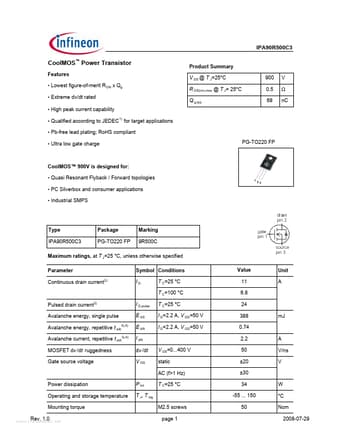

Preview of IPA90R500C3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Lowest figure-of-merit R ON x Qg
* Extreme dv/dt rated
* High peak current capability

Applications

* Pb-free lead plating; RoHS compliant
* Ultra low gate charge Product Summary V DS @ T J=25°C R DS(on),max @ T J= 25°C Q g,typ 900 0.5 68 V Ω nC PG-TO220 FP CoolMOS™ 900V is designed for:
* Quasi Resonant Flyback / Forward topologies
* PC Silverbox and consumer ap
