IPA030N10N3, N-Channel MOSFET

isc N-Channel MOSFET Transistor IPA030N10N3,IIPA030N10N3 *.

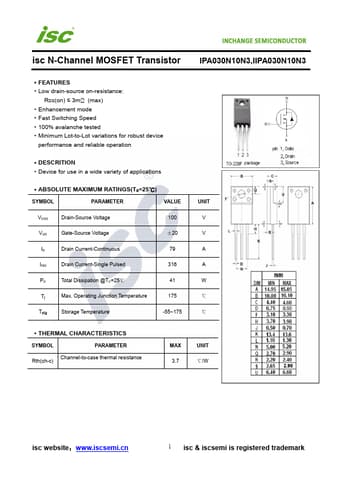

datasheet Preview Page 1 from Datasheet4u.com

IPA030N10N3-INCHANGE.pdf

IPA030N10N3 Datasheet Preview — Preview of IPA030N10N3 PDF

Datasheet Details

Part number:

IPA030N10N3

Manufacturer:

INCHANGE

File Size:

251.32 KB

Description:

N-Channel MOSFET

Features

* Low drain-source on-resistance: RDS(on) ≤ 3mΩ (max)
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 79 IDM Drain Current-Single Pulsed 316 PD Total Dissipation @TC=25℃ 41 Tj Max. Operating Junction Temperature 175 Tstg Storage Te
