IPI100N04S3-03 - OptiMOS-T Power-Transistor

Infineon Technologies

📥 Download Datasheet

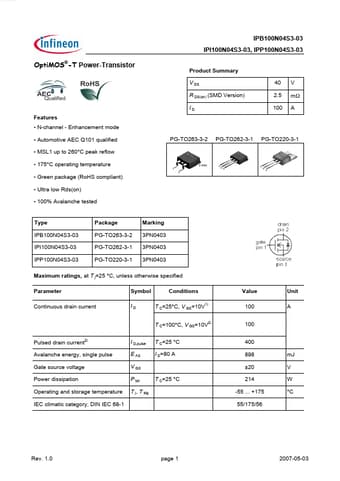

IPI100N04S3-03 Datasheet Preview — Preview of IPI100N04S3-03 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPI100N04S3-03
Manufacturer: Infineon ↗ Technologies
File Size: 215.92 KB
Datasheet: IPI100N04S3-03_InfineonTechnologies.pdf
Description: OptiMOS-T Power-Transistor

IPI100N04S3-03 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
Ultra low Rds(on).
100% Avalanche tested PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB100N04S3-03 IPI100N04S3-03 IPP100N04S3-03 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 3PN0403 3PN0403 3PN0403 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Con.
