IPI120N04S4-02 - Power-Transistor

Infineon

📥 Download Datasheet

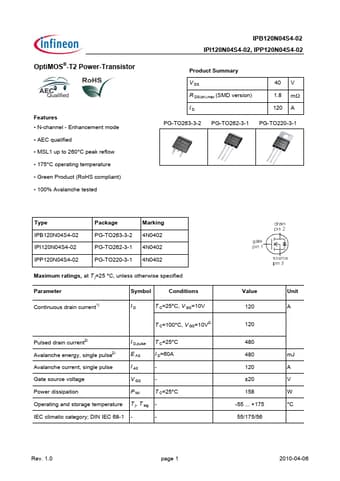

IPI120N04S4-02 Datasheet Preview — Preview of IPI120N04S4-02 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPI120N04S4-02
Manufacturer: Infineon ↗
File Size: 156.84 KB
Datasheet: IPI120N04S4-02-Infineon.pdf
Description: Power-Transistor

IPI120N04S4-02 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB120N04S4-02 IPI120N04S4-02, IPP120N04S4-02 Product Summary V DS R DS(on),max (SMD version) ID 40 V 1.8 mΩ 120 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB120N04S4-02 IPI120N04S4-02 IPP120N04S4-02 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0402 4N0402 4N0402.
