IPI100N10S3-05 - Power-Transistor

Infineon Technologies

📥 Download Datasheet

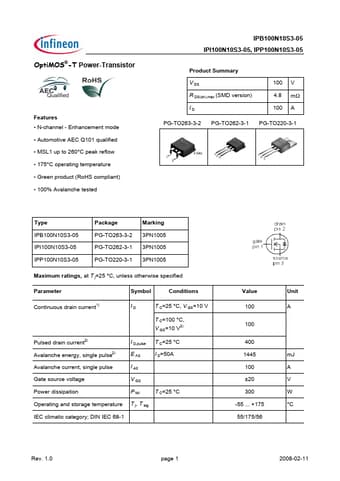

IPI100N10S3-05 Datasheet Preview — Preview of IPI100N10S3-05 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPI100N10S3-05
Manufacturer: Infineon ↗ Technologies
File Size: 183.69 KB
Datasheet: IPI100N10S3-05-InfineonTechnologies.pdf
Description: Power-Transistor

IPI100N10S3-05 Product details

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green product (RoHS compliant).
100% Avalanche tested IPB100N10S3-05 IPI100N10S3-05, IPP100N10S3-05 Product Summary V DS R DS(on),max (SMD version) ID 100 V 4.8 mΩ 100 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB100N10S3-05 IPI100N10S3-05 IPP100N10S3-05 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 3PN1.
