IPI100N08S2-07, IPB-100N - Power-Transistor

Infineon Technologies

📥 Download Datasheet

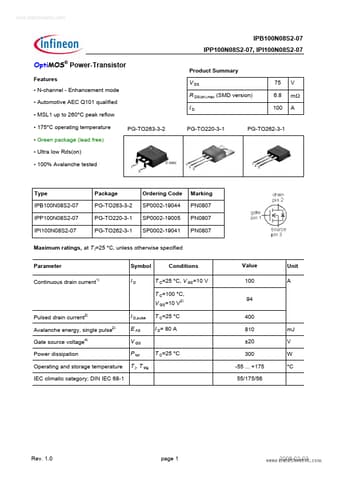

IPI100N08S2-07 Datasheet Preview — This datasheet PDF includes multiple part numbers: IPI100N08S2-07, IPB-100N. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPI100N08S2-07, IPB-100N
Manufacturer: Infineon ↗ Technologies
File Size: 193.06 KB
Datasheet: IPB-100N-08.pdf
Description: Power-Transistor
Note: This datasheet PDF includes multiple part numbers: IPI100N08S2-07, IPB-100N.
Please refer to the document for exact specifications by model.

IPI100N08S2-07 Product details

Description

and charts stated herein.

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested PG-TO263-3-2 Product Summary V DS R DS(on),max (SMD version) ID 75 6.8 100 V mΩ A PG-TO220-3-1 PG-TO262-3-1 Type IPB100N08S2-07 IPP100N08S2-07 IPI100N08S2-07 Package PG-TO263-3-2 PG-TO220-3-1 PG-TO262-3-1 Ordering Code SP0002-19044 SP0002-190.
