2EDB7259K - Dual-channel isolated gate-driver

Infineon

📥 Download Datasheet

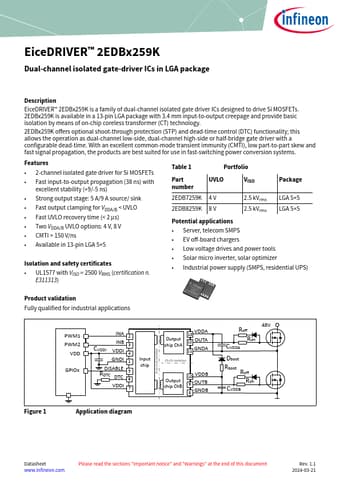

2EDB7259K Datasheet Preview — Preview of 2EDB7259K PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2EDB7259K
Manufacturer	Infineon ↗
File Size	3.63 MB
Description	Dual-channel isolated gate-driver
Datasheet	2EDB7259K-Infineon.pdf

2EDB7259K Product details

Description

EiceDRIVER™ 2EDBx259K is a family of dual-channel isolated gate driver ICs designed to drive Si MOSFETs.

Features

2-channel isolated gate driver for Si MOSFETs.
Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns).
Strong output stage: 5 A/9 A source/ sink.
Fast output clamping for VDDA/B < UVLO.
Fast UVLO recovery time (< 2 μs).
Two VDDA/B UVLO options: 4 V, 8 V.
CMTI > 150 V/ns.
Available in 13-pin LGA 5×5 Isolation and safety certificates.
UL1577 with VISO = 2500 VRMS (certification n. E311313) Tabl.
