2EDB7259Y

Dual-channel isolated gate-driver

Infineon

2EDB7259Y Features

* 2-channel isolated gate driver for Si and SiC MOSFETs and GaN HEMTs power switches

* Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns)

* Strong output stage: 5 A/9 A source/sink

* Fast output clamping for VDDA/B < UVLO

* Fast UVLO

2EDB7259Y General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Block diagram . . . . . . . . . ..

2EDB7259Y Datasheet (4.17 MB)

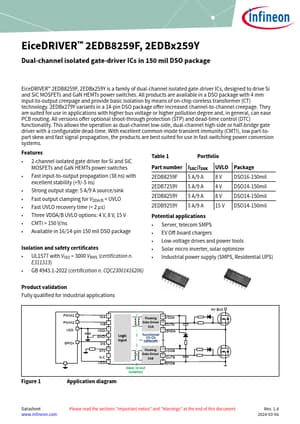

2EDB7259Y Datasheet Preview — Preview of 2EDB7259Y PDF
