2EDB8259Y, 2EDB8259F - Dual-channel isolated gate-driver

Infineon

📥 Download Datasheet

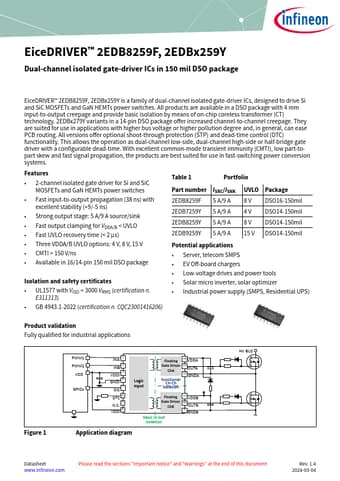

2EDB8259Y Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EDB8259Y, 2EDB8259F. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2EDB8259Y, 2EDB8259F
Manufacturer	Infineon ↗
File Size	4.17 MB
Description	Dual-channel isolated gate-driver
Datasheet	2EDB8259F-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2EDB8259Y, 2EDB8259F. Please refer to the document for exact specifications by model.

2EDB8259Y Product details

Description

3 Functional description 5 Block diagram .

Features

2-channel isolated gate driver for Si and SiC MOSFETs and GaN HEMTs power switches.
Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns).
Strong output stage: 5 A/9 A source/sink.
Fast output clamping for VDDA/B < UVLO.
Fast UVLO recovery time (< 2 μs).
Three VDDA/B UVLO options: 4 V, 8 V, 15 V.
CMTI > 150 V/ns.
Available in 16/14-pin 150 mil DSO package Isolation and safety certificates.
UL.
