2EDL8024, 2EDL8023 - 120V Junction-Isolated High Side and Low Side Gate

Infineon

📥 Download Datasheet

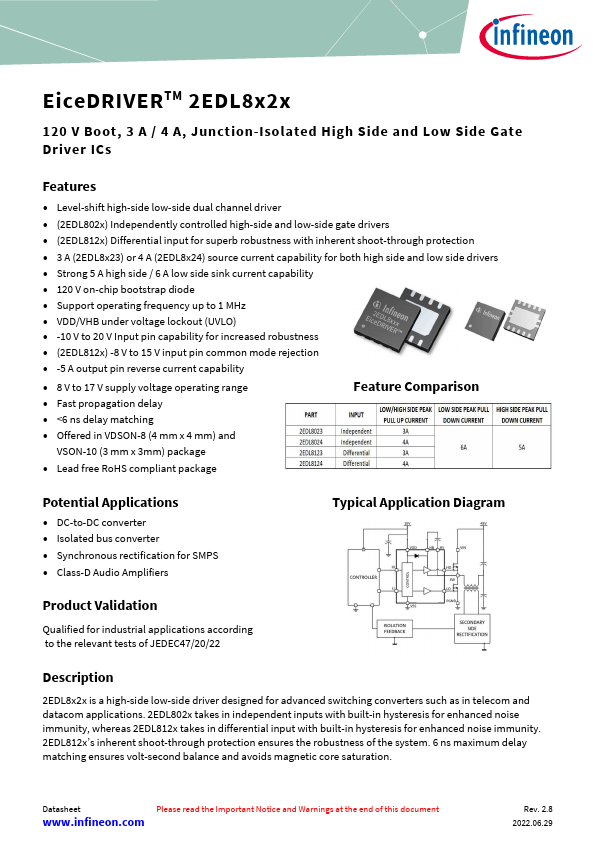

2EDL8024 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EDL8024, 2EDL8023. Please refer to the document for exact specifications by model.

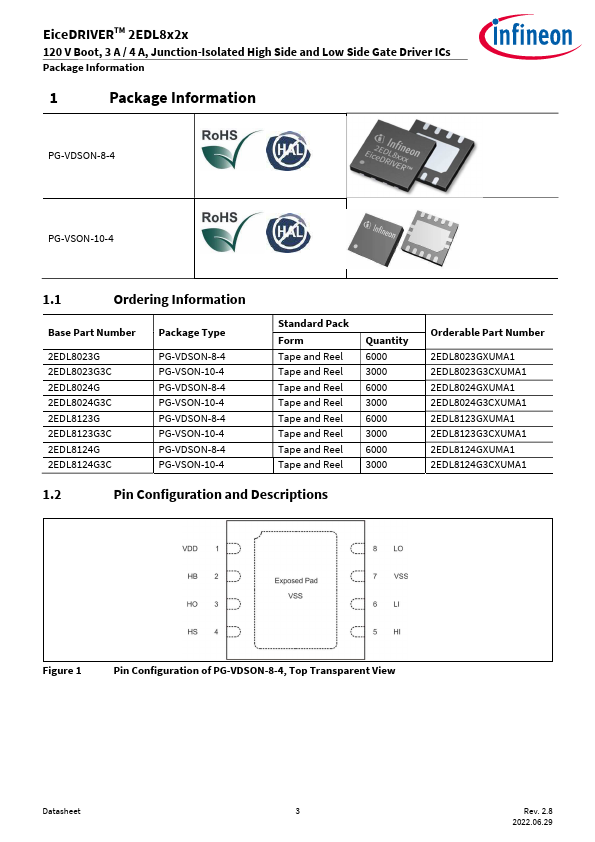

datasheet Preview Page 2

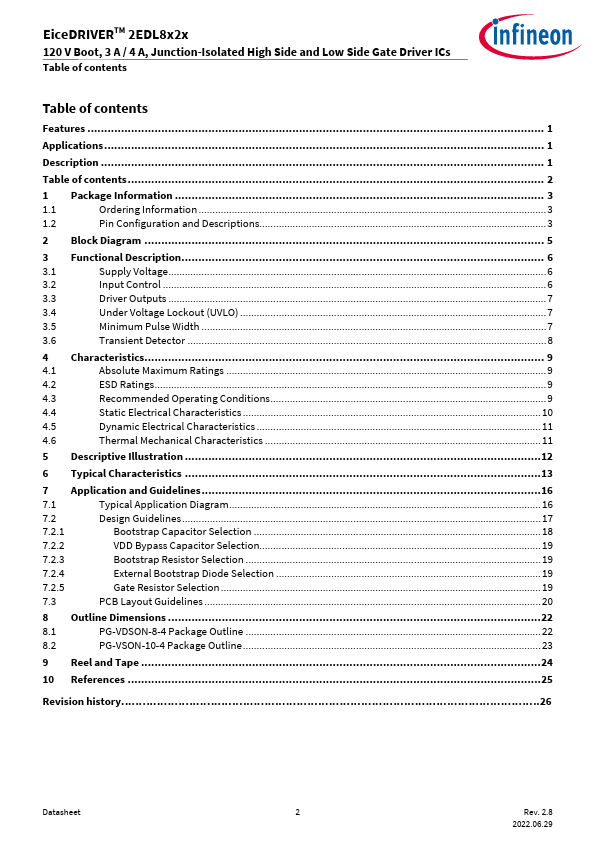

datasheet Preview Page 3

Datasheet Details

Part number	2EDL8024, 2EDL8023
Manufacturer	Infineon ↗
File Size	1.23 MB
Description	120V Junction-Isolated High Side and Low Side Gate
Datasheet	2EDL8023-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 2EDL8024, 2EDL8023. Please refer to the document for exact specifications by model.

2EDL8024 Product details

Description

2EDL8x2x is a high-side low-side driver designed for advanced switching converters such as in telecom and datacom applications.

Features

Level-shift high-side low-side dual channel driver.
(2EDL802x) Independently controlled high-side and low-side gate drivers.
(2EDL812x) Differential input for superb robustness with inherent shoot-through protection.
3 A (2EDL8x23) or 4 A (2EDL8x24) source current capability for both high side and low side drivers.
Strong 5 A high side / 6 A low side sink current capability.
120 V on-chip bootstrap diode.
Support operating frequency up to 1 MHz.
VDD/V.
