2EDL8124, 2EDL8023 120V Junction-Isolated High Side and Low Side Gate

Infineon

Description

EiceDRIVERTM 2EDL8x2x 120 V Boot, 3 A / 4 A, Junction-Isolated High Side and Low Side Gate Driver ICs .
2EDL8x2x is a high-side low-side driver designed for advanced switching converters such as in telecom and datacom applications.

📥 Download Datasheet

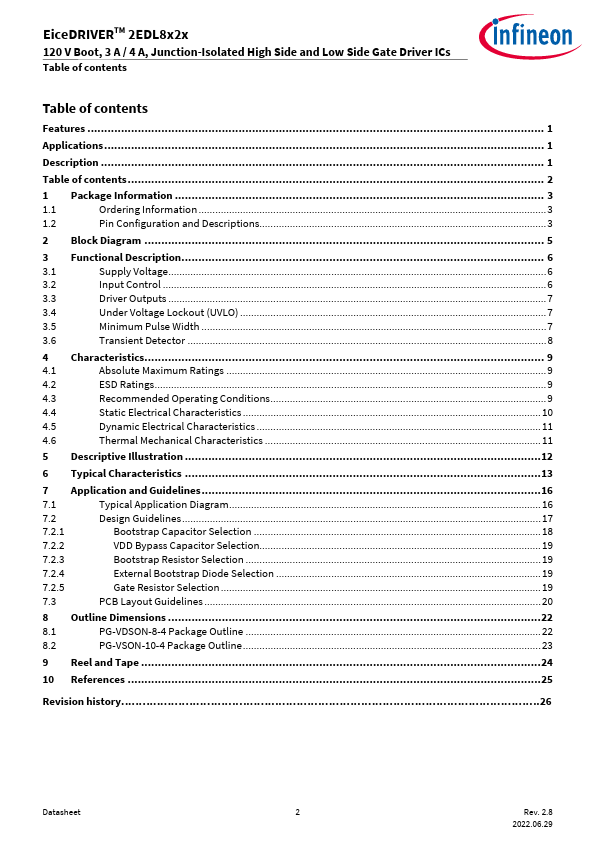

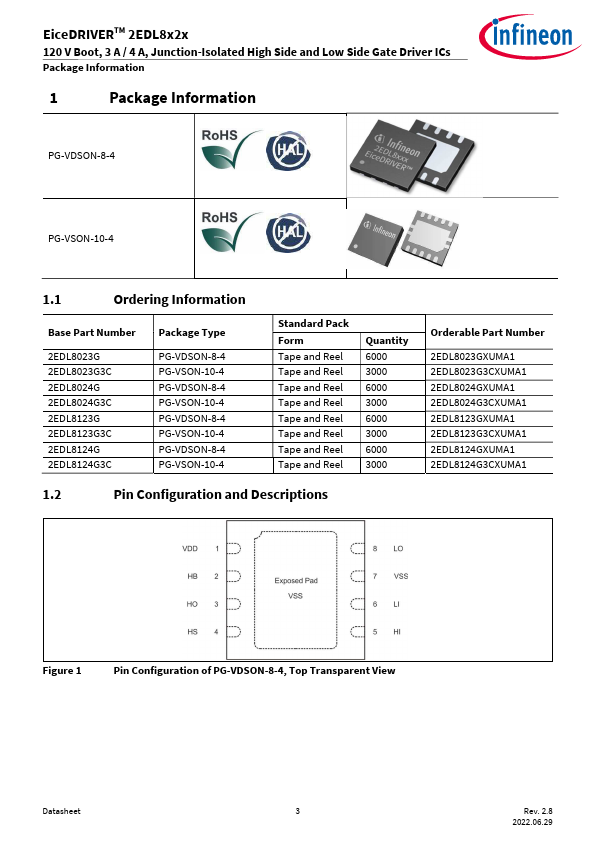

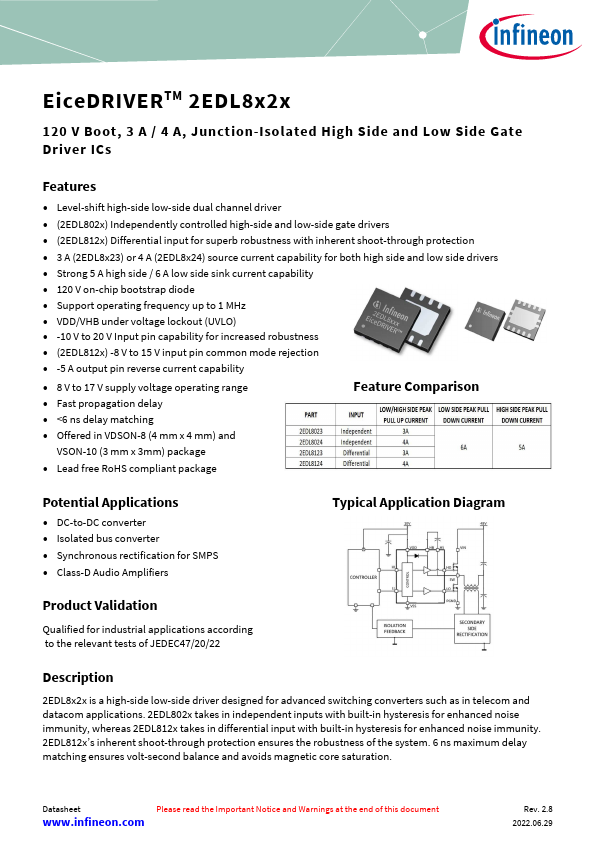

2EDL8124 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EDL8124, 2EDL8023. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2EDL8124, 2EDL8023
Manufacturer: Infineon ↗
File Size: 1.23 MB
Datasheet: 2EDL8023-Infineon.pdf
Description: 120V Junction-Isolated High Side and Low Side Gate
Note: This datasheet PDF includes multiple part numbers: 2EDL8124, 2EDL8023.
Please refer to the document for exact specifications by model.

Features

* Level-shift high-side low-side dual channel driver
* (2EDL802x) Independently controlled high-side and low-side gate drivers
* (2EDL812x) Differential input for superb robustness with inherent shoot-through protection
* 3 A (2EDL8x23) or 4 A (2EDL8x24) source current capability

Applications

* DC-to-DC converter
* Isolated bus converter
* Synchronous rectification for SMPS
