2EDR6258X Dual-channel isolated gate driver

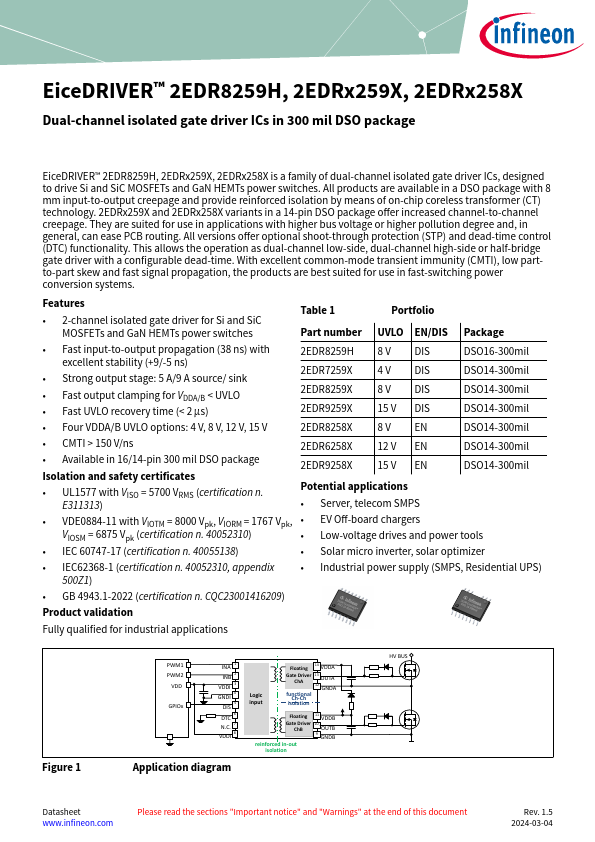

EiceDRIVER™ 2EDR8259H, 2EDRx259X, 2EDRx258X Dual-channel isolated gate driver ICs in 300 mil DSO package EiceDRIVER™ 2EDR8259H, 2EDRx259X, 2EDRx258X is a family of dual-channel isolated gate driver ICs, designed to drive Si and SiC MOSFETs and GaN HEMTs power switches. All products are available in a DSO package with 8 mm input-to-output creepage and provide reinforced isolation by means of on-chip coreless transformer (CT) technology. 2EDRx259X and 2EDRx258X variants in a 14-pin DSO package of.

2EDR6258X Features

* 2-channel isolated gate driver for Si and SiC MOSFETs and GaN HEMTs power switches Table 1 Portfolio Part number UVLO EN/DIS Package

* Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns)

* Strong output stage: 5 A/9 A source/ sink

* Fast

2EDR6258X Datasheet (4.52 MB)
