2EDR8259H - Dual-channel isolated gate driver

Infineon

📥 Download Datasheet

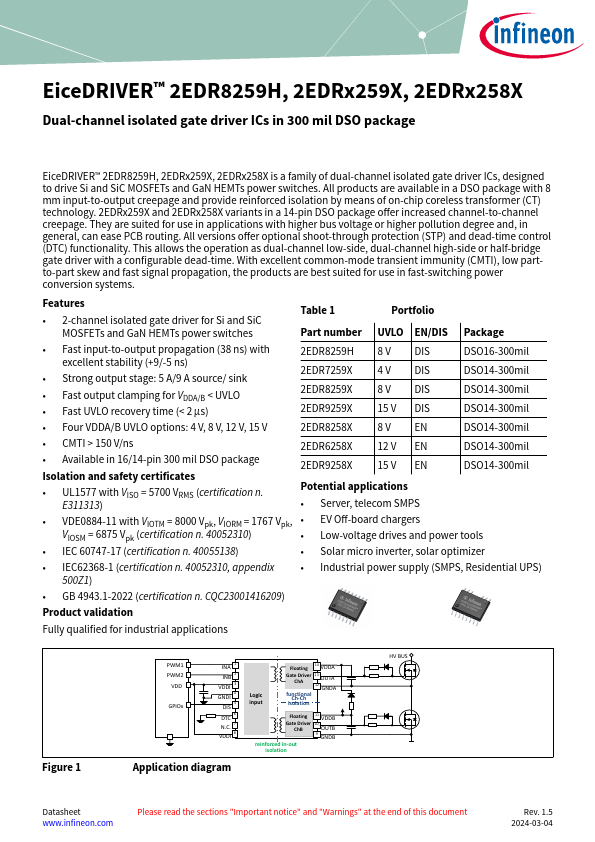

2EDR8259H Datasheet Preview — Preview of 2EDR8259H PDF

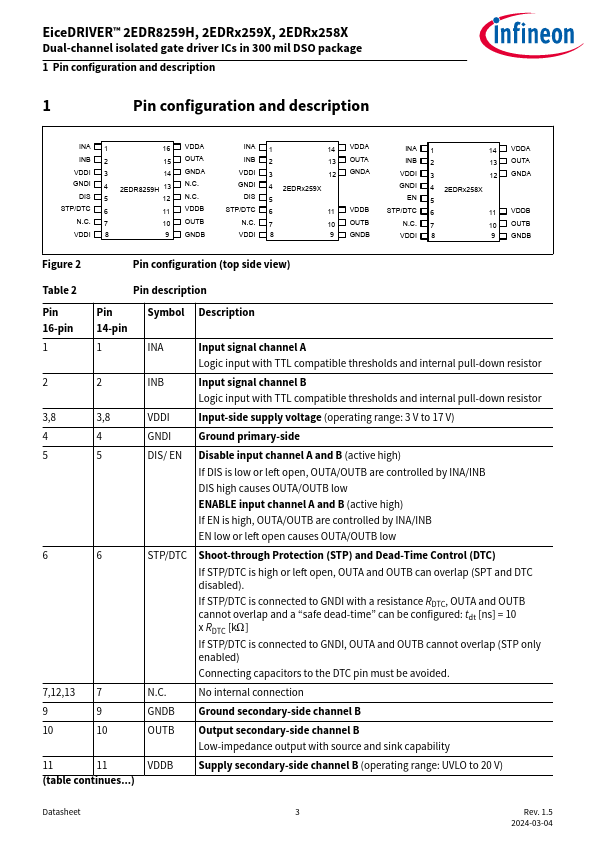

datasheet Preview Page 2

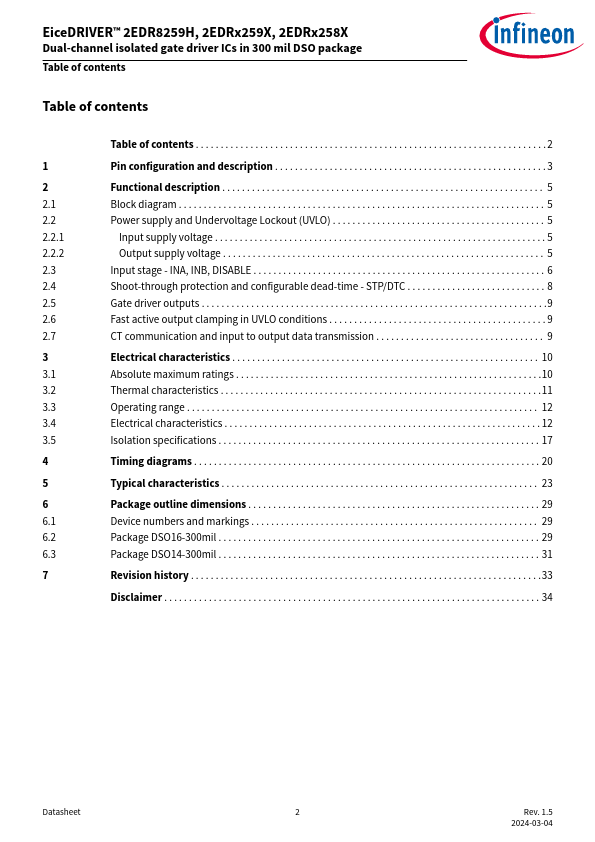

datasheet Preview Page 3

Datasheet Details

Part number	2EDR8259H
Manufacturer	Infineon ↗
File Size	4.52 MB
Description	Dual-channel isolated gate driver
Datasheet	2EDR8259H-Infineon.pdf

2EDR8259H Product details

Description

3 Functional description 5 Block diagram .

Features

2-channel isolated gate driver for Si and SiC MOSFETs and GaN HEMTs power switches Table 1 Portfolio Part number UVLO EN/DIS Package.
Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns).
Strong output stage: 5 A/9 A source/ sink.
Fast output clamping for VDDA/B < UVLO.
Fast UVLO recovery time (< 2 μs) 2EDR8259H 2EDR7259X 2EDR8259X 2EDR9259X 8 V DIS 4 V DIS 8 V DIS 15 V DIS DSO16-300mil DSO14-300mil DSO14-300mil DSO14-3.
