2EDR7259X, 2EDR8259H Dual-channel isolated gate driver

Infineon

Description

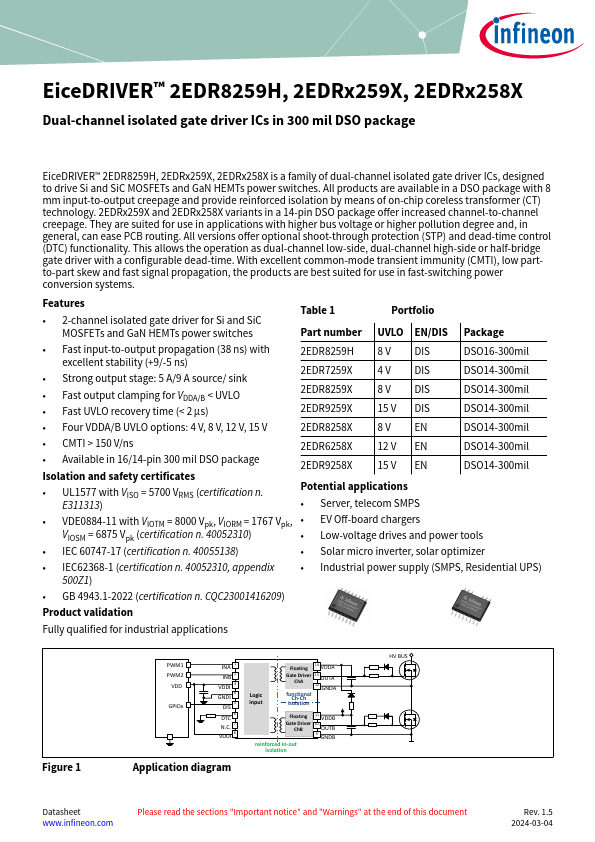

EiceDRIVER™ 2EDR8259H, 2EDRx259X, 2EDRx258X Dual-channel isolated gate driver ICs in 300 mil DSO package EiceDRIVER™ 2EDR8259H, 2EDRx259X, 2EDRx258X .

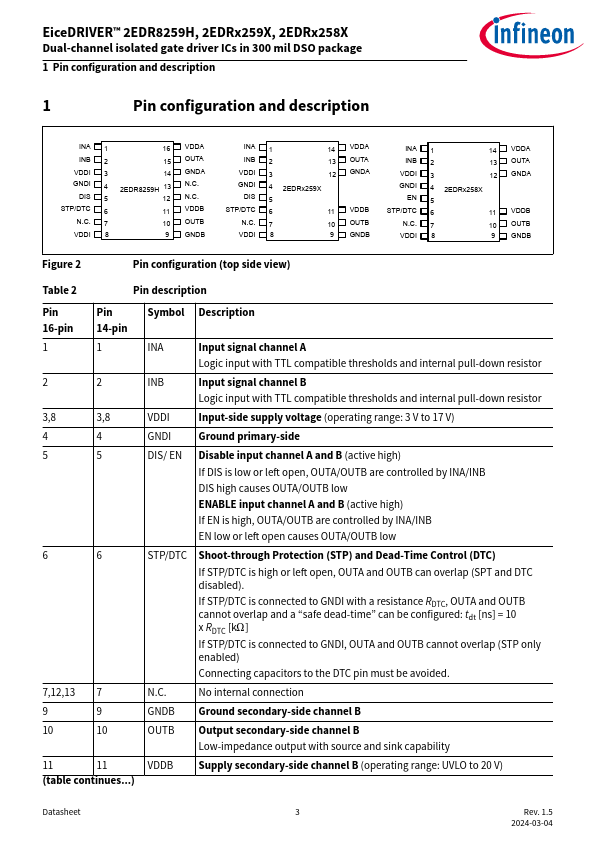

3 Functional description.

📥 Download Datasheet

2EDR7259X Datasheet Preview — This datasheet PDF includes multiple part numbers: 2EDR7259X, 2EDR8259H. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2EDR7259X, 2EDR8259H
Manufacturer: Infineon ↗
File Size: 4.52 MB
Datasheet: 2EDR8259H-Infineon.pdf
Description: Dual-channel isolated gate driver
Note: This datasheet PDF includes multiple part numbers: 2EDR7259X, 2EDR8259H.
Please refer to the document for exact specifications by model.

Features

* 2-channel isolated gate driver for Si and SiC MOSFETs and GaN HEMTs power switches Table 1 Portfolio Part number UVLO EN/DIS Package
* Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns)
* Strong output stage: 5 A/9 A source/ sink
* Fast

Applications

* with higher bus voltage or higher pollution degree and, in general, can ease PCB routing. All versions offer optional shoot-through protection (STP) and dead-time control (DTC) functionality. This allows the operation as dual-channel low-side, dual-channel high-side or half-bridge gate driver with a
