AIMW120R035M1H 1200V Automotive SiC MOSFET

Infineon

Description

AIMW120R035M1H AIMW120R035M1H CoolSiC™ Automotive 1200V SiC Trench MOSFET 1200V G1 Silicon Carbide MOSFET .

📥 Download Datasheet

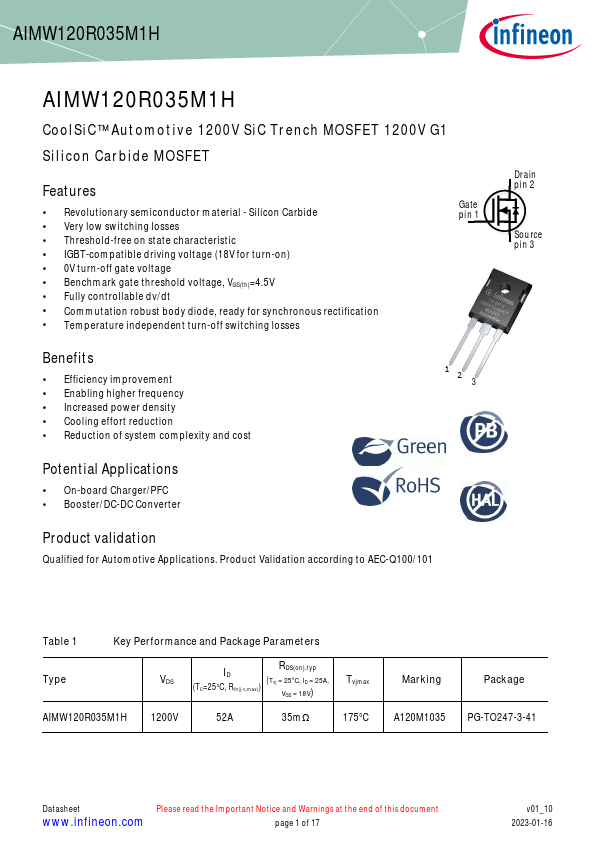

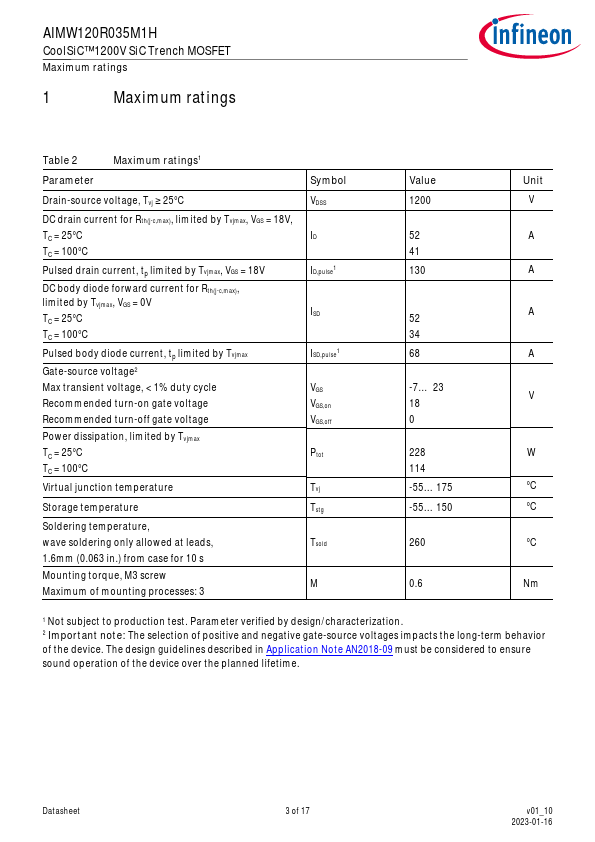

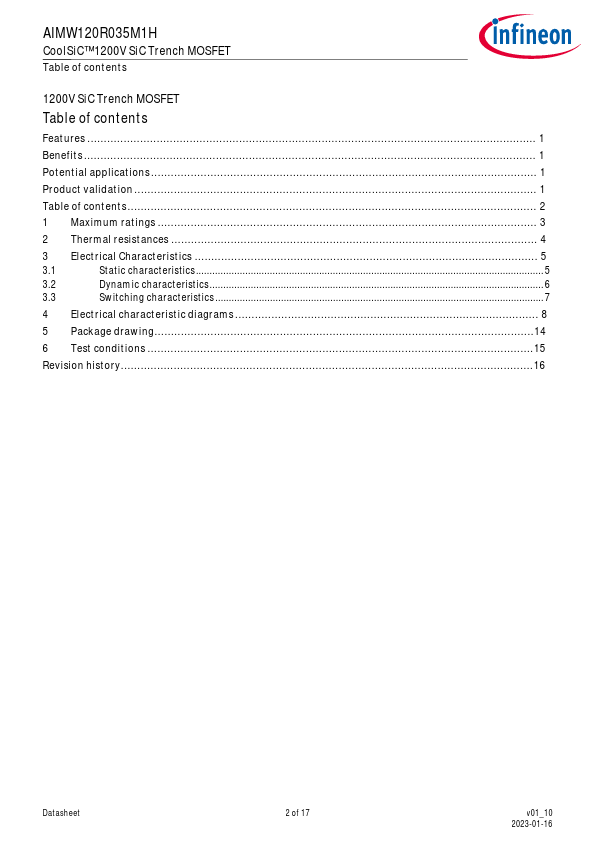

AIMW120R035M1H Datasheet Preview — Preview of AIMW120R035M1H PDF

Datasheet Specifications

Part number: AIMW120R035M1H
Manufacturer: Infineon ↗
File Size: 1.00 MB
Datasheet: AIMW120R035M1H-Infineon.pdf
Description: 1200V Automotive SiC MOSFET

Features

* Revolutionary semiconductor material - Silicon Carbide Gate pin 1
* Very low switching losses
* Threshold-free on state characteristic
* IGBT-compatible driving voltage (18V for turn-on)
* 0V turn-off gate voltage
* Benchmark gate threshold vo

Applications

* On-board Charger/PFC
* Booster/DC-DC Converter Product validation Qualified for Automotive Applications. Product Validation according to AEC-Q100/101 Drain pin 2 Sou rce pin 3 Table 1 Key Performance and Package Parameters Type VDS ID RDS(on),typ (Tvj = 25°C, ID = 25A, Tvj
